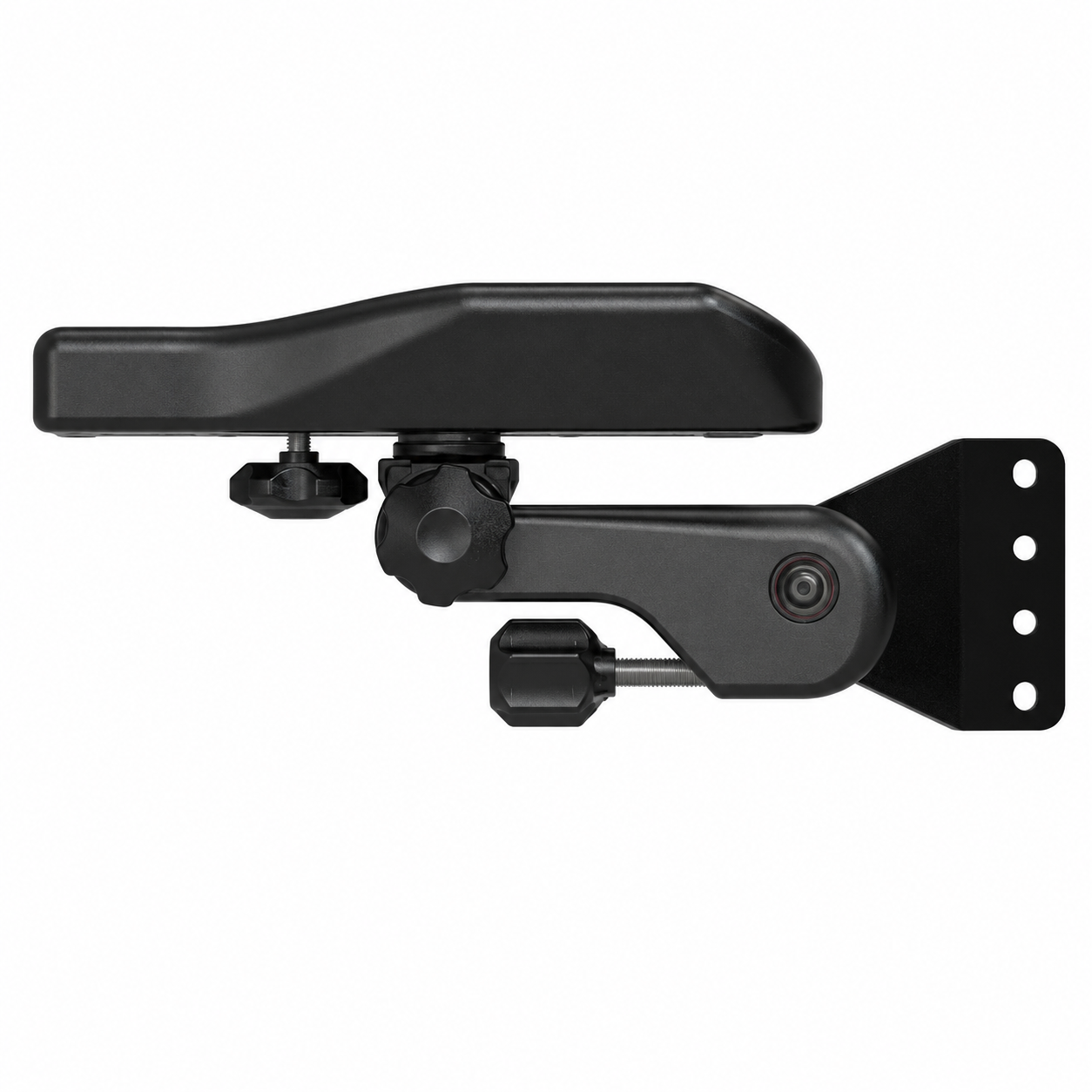

Armrest left Frameco Ergo 310C

Key Features

• Ergonomic design for enhanced operator comfort
• Strong and durable construction for long-term use
• Compatible with a wide range of seat series
• Suitable for both installation and replacement projects
• Optional joystick adapters available (supports up to 3.0 kg)

Components Included

• Seat adapter
• Arm
• Short knob
• Stop screw (M8x30)
• Jagged lock washer
• Pad adapter
• O-ring
• Trisert M8
• T-strip 310
• Allen screw (M8x35)
• Washer (9x18x1.5)
• Carriage bolt (M8x45)
• High knob (M10)
• Threaded rod (M10)
• Square nut (M10)
• Female hinge
• Hinge washer

Technical Specifications

• Weight (without seat adapter): 1.3 kg
• Maximum joystick weight (armrest): 1.0 kg
• Maximum joystick weight (with adapter): 3.0 kg

Compatibility

Widely used across leading machinery brands, including:

• John Deere Construction
• Volvo CE
• Komatsu
• Liebherr

Overview

The Ergo Armrests 310 provide a practical and versatile solution for improving operator comfort and control. Their robust build and adaptable design make them a reliable choice for demanding environments where performance and ergonomics are essential.

Frequently Asked Questions – Ergo Armrests 310

Q1: What are the Ergo Armrests 310 used for?

A: They are designed to provide ergonomic support and comfort for operators in various seating applications, particularly in machinery and industrial environments.

Q2: Are these armrests compatible with all seats?

A: The Ergo Armrests 310 are compatible with many popular seat series. However, it’s recommended to check specific seat compatibility before installation.

Q3: Can joystick controls be mounted on these armrests?

A: Yes, joystick adapters are available, allowing integration of controls for enhanced operator functionality.

Q4: What is the maximum joystick weight supported?

A: The armrests support up to 1.0 kg for standard use and up to 3.0 kg when using a joystick adapter.

Q5: What components are included with the armrests?

A: The package includes all necessary components such as seat adapter, knobs, screws, washers, threaded rods, hinges, and mounting hardware.

Q6: How much do the armrests weigh?

A: The armrests weigh approximately 1.3 kg (excluding the seat adapter).

Q7: Are these armrests suitable for heavy-duty use?

A: Yes, they are built with durable materials and are suitable for demanding environments such as construction and industrial machinery.

Q8: Which brands are these armrests commonly used with?

A: They are commonly used with brands like John Deere Construction, Volvo CE, Komatsu, and Liebherr.

Q9: Can these armrests be used for replacements?

A: Yes, they are ideal for both new installations and as replacement armrests.

Q10: Do the armrests improve operator comfort?

A: Absolutely. Their ergonomic design helps reduce fatigue and provides better support during long working hours.
