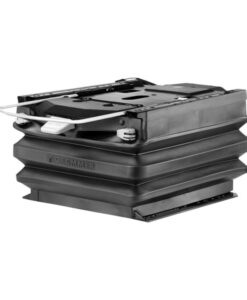

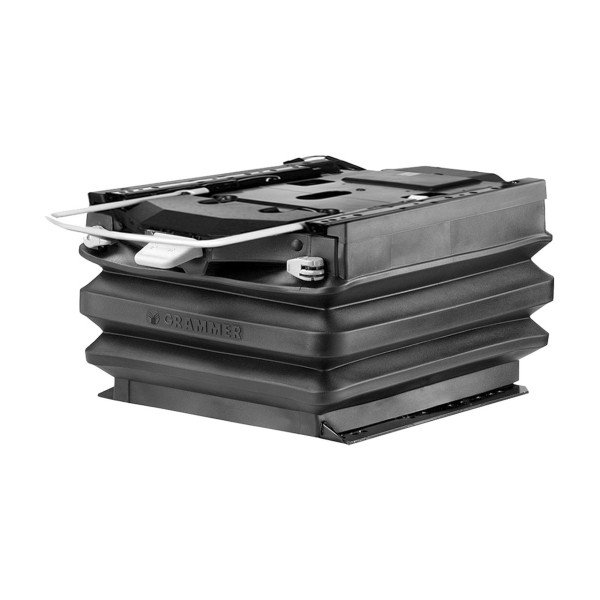

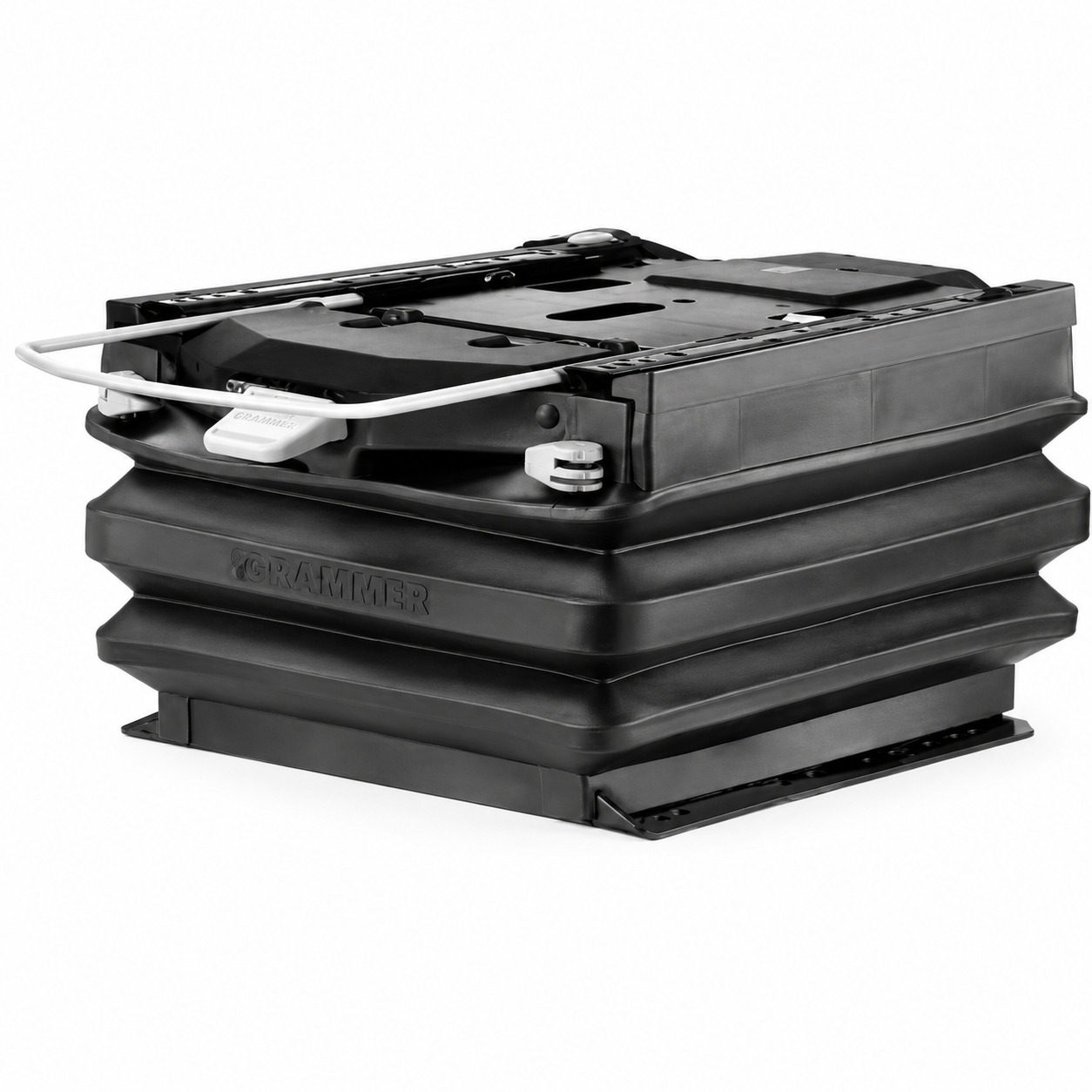

GRAMMER ACTIMO MSG97AL 24 Volt Air Suspension
GRAMMER MSG97AL 24V AIR SUSPENSION UNIT
Product Introduction
The GRAMMER MSG97AL Air Suspension Unit is engineered to deliver superior ride comfort, stability, and operator support in demanding agricultural, construction, forestry, and industrial applications. Designed for large machinery operating on rough terrain, this heavy-duty suspension system effectively reduces vibration and shock loads, improving productivity while minimizing operator fatigue.
Featuring an integrated 24-volt compressor (also available in a 12-volt version), the MSG97AL automatically adjusts to the operator’s weight, ensuring optimal suspension performance at all times. The advanced low-frequency air suspension system, combined with longitudinal suspension and a locking mechanism, provides exceptional comfort and control even in the most challenging working environments.
Built to Grammer’s renowned quality standards, the MSG97AL offers reliable long-term performance, making it the ideal foundation for premium operator seating systems.
Features of the GRAMMER MSG97AL Air Suspension
Integrated 24 Volt Air Suspension System
The GRAMMER MSG97AL Air Suspension incorporates a powerful integrated 24V compressor that automatically maintains the correct suspension pressure for maximum comfort and support.
Automatic Weight Adjustment
The automatic weight adjustment system continuously optimizes suspension settings to match the operator’s weight, ensuring a smooth ride and improved vibration isolation.
Longitudinal Suspension with Locking Function
The integrated longitudinal suspension absorbs forward and rearward movements commonly experienced on rough terrain. A locking mechanism allows the suspension to be secured when required.
Extended Slide Rail Travel
With 170 mm of fore-and-aft adjustment, operators can quickly find their ideal seating position for maximum comfort and machine control.
Low Frequency Vibration Isolation
The GRAMMER MSG97AL Air Suspension is designed to minimize whole-body vibration exposure, helping reduce fatigue and improve operator wellbeing during extended working periods.
Heavy-Duty Construction
Built for intensive agricultural, construction, and industrial applications, the MSG97AL delivers reliable performance in the toughest working conditions.

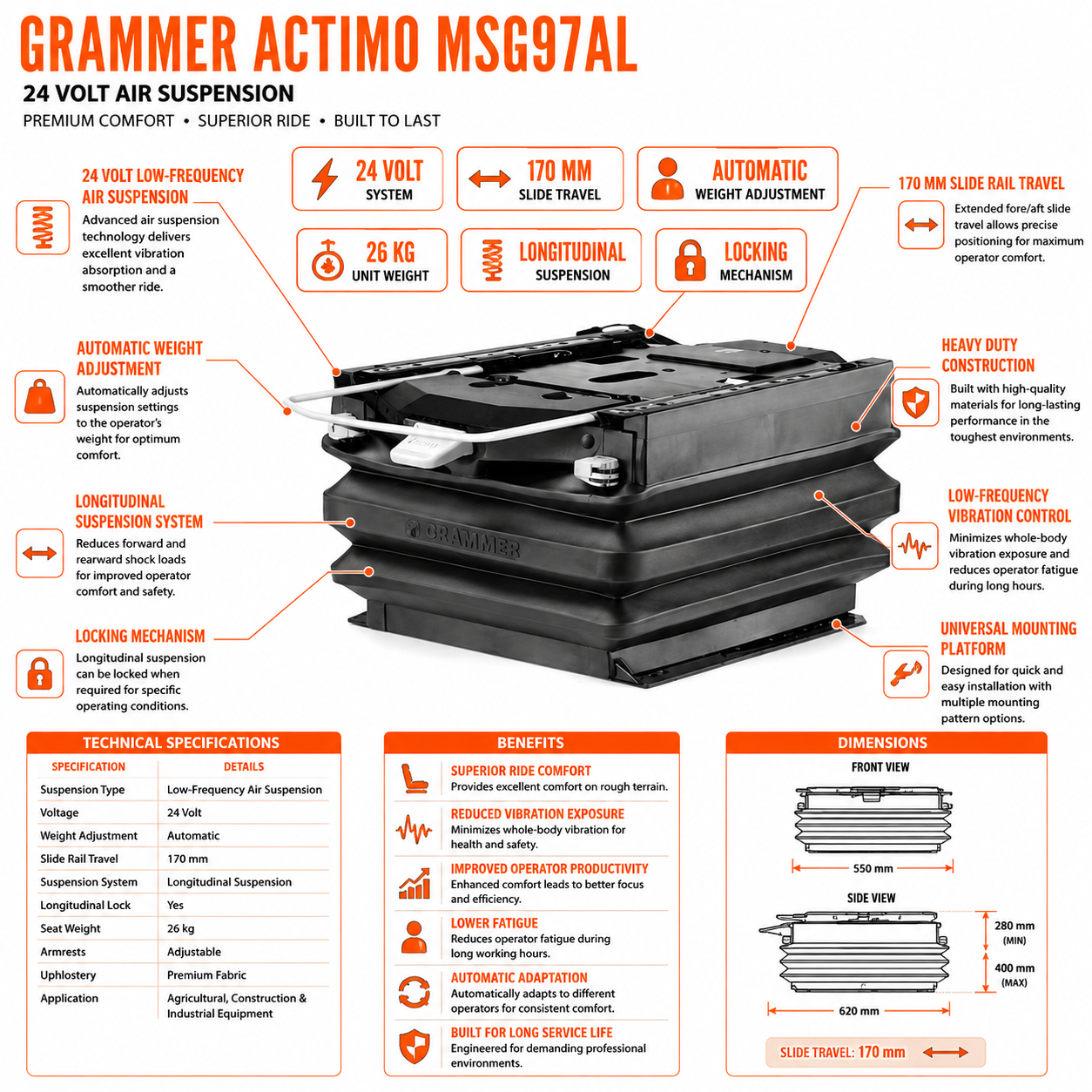

GRAMMER MSG97AL Air Suspension Technical Specifications
| Specification | Details |
|---|---|
| Suspension Type | Low-Frequency Air Suspension |
| Voltage | 24 Volt (12 Volt Available) |
| Weight Adjustment | Automatic |
| Slide Rail Travel | 170 mm |
| Suspension System | Longitudinal Suspension |
| Longitudinal Lock | Yes |
| Unit Weight | 26 kg |
| Mounting Pattern | Universal |
| Applications | Agricultural, Construction & Industrial Equipment |
Benefits of the GRAMMER MSG97AL Air Suspension
- Superior ride comfort on rough terrain
- Reduced whole-body vibration exposure
- Improved operator productivity
- Lower fatigue during long operating hours
- Automatic adaptation to different operators
- Enhanced safety and machine control
- Long service life in demanding environments
- Reliable performance in agricultural and industrial machinery
Applications for the GRAMMER MSG97AL Air Suspension
The GRAMMER MSG97AL Air Suspension is suitable for a wide range of equipment including:
- Agricultural Tractors
- Combine Harvesters
- Wheel Loaders
- Telehandlers
- Forestry Equipment
- Industrial Vehicles
- Construction Machinery
- Material Handling Equipment
- Municipal Vehicles
