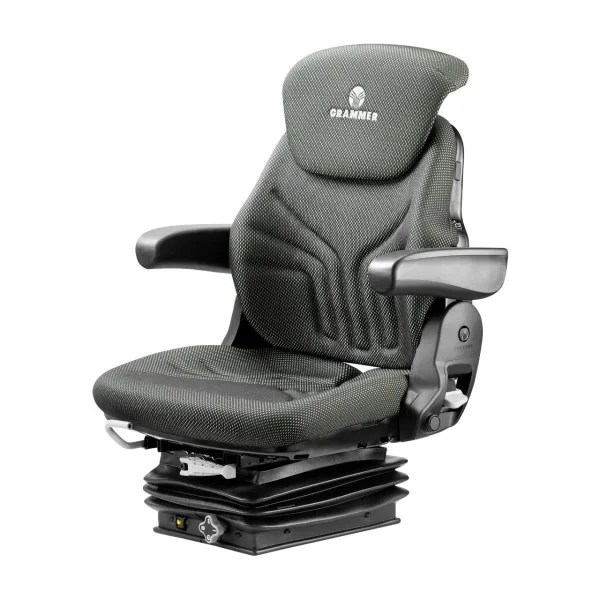

GRAMMER Compact Basic MSG83/721
The GRAMMER Compact Basic MSG83/721 seat with narrow mechanical suspension will be ideal for tight spaces in your tractor. The GRAMMER Compact Basic W agricultural seat has a suspension travel of 80 mm as well as manual weight adjustment from 50 to 130 kg. The GRAMMER Compact Basic W agricultural and vineyard seat is equipped with lumbar support for greater comfort. Its upholstery is in anthracite and silver green fabric.

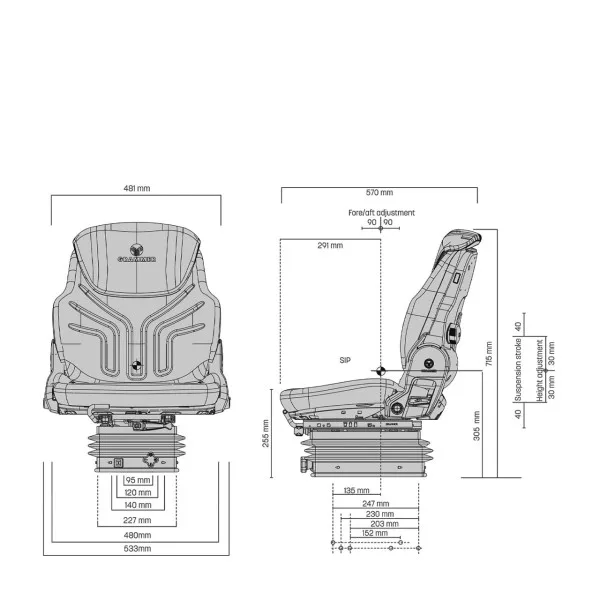

GRAMMER Compact Basic MSG83/721 Specifications:
~ Mechanical suspension
~ 80mm vertical suspension stroke
~ Weight adjustment 50-130kg
~ Mechanical height adjustment – 60mm
~ Fore and aft adjustment
~ Mechanical lumbar support
~ Adjustable seat back angle
~ 480mm seat width
Options
~ armrests
~ headrest
~ seat belt
GRAMMER Compact Basic MSG83/721 Applications
Replaces Cat Part Numbers: 233-7391, 235-0512, 235-3151, 235-4119, 248-1362, 259-1637, 259-1635, 259-1637, 279-5273
Cat Machines: 906H, 906H2, 907H, 907H2, 908H, 908H2, 910K, 914K, AP-555E, AP-600D, AP-655C, AP-655D, AP-1000E, AP-1055D, AP-1055E, BG-500E, BG600D, BG655D, BG-1000E, BG-1055E, BG-2455D, BG-260D, CP-44, CP-56, CP-64, CP-76, CP-433E CP-533E, CP-573E, CP-633E, CS-44, CS-54, CS-64, CS-74. Cs-423E, CS-433E, CS-533E, CS-563E, CS-583E, CS-663E, CS-683E, CW-14, PS-150B, PS-150C, PS-200B, PS-360B, PS-360C
Kubota Part Numbers: RC448-38600
Kubota Machines: KX91-3, KX121-3, KX161-3
