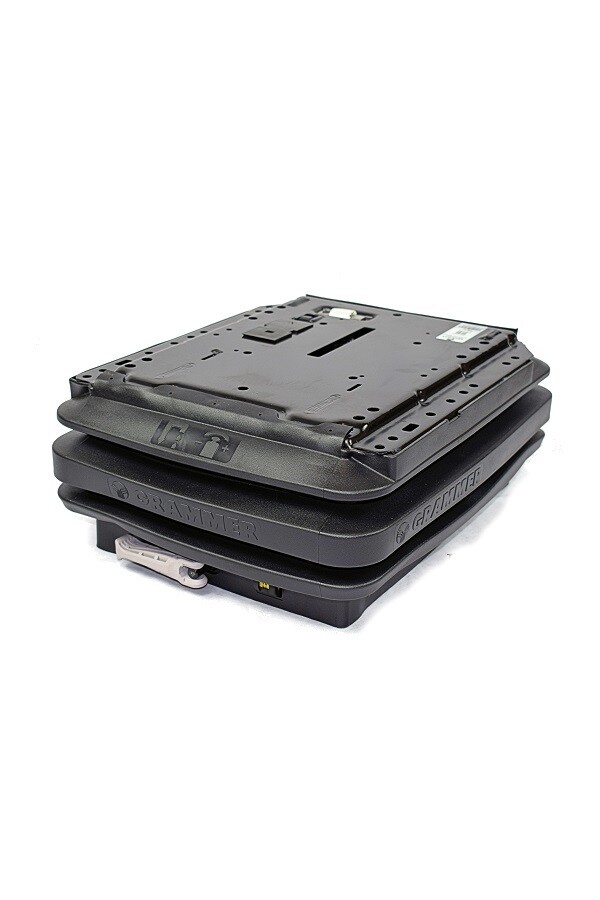

GRAMMER TYPE DS85/Msg85 MECHANICAL SUSPENSION
Original price was: €280.00.€189.00Current price is: €189.00. ex vat
GRAMMER TYPE REPRODUCTION MECHANICAL SEAT SUSPENSION BASE.Based on the Grammer DS85 this is an ideal replacement mechanical suspension unit and can be fitted to tractors, telehandlers, excavators, plant machinery and other multi purpose uses Directly compatible with many Grammer seat tops or can be retro fitted to many different machines to replace a tired or broken suspension unit. (This suspension unit can directly replace Grammer MSG85, MSG95 and DS85 suspension as they have the same mounting centres).Can be fitted to tractors, telehandlers, excavators, plant machinery and other multi purpose uses
Directly compatible with many Grammer seat tops or can be retro fitted to many different machines to replace a tired or broken suspension unit.
(This suspension unit can directly replace Grammer MSG85, MSG95 and DS85 suspension as they have the same mounting centres
GRAMMER TYPE DS85/Msg85 MECHANICAL SUSPENSION Features;
~ Adjustable mechanical suspension
~ Weight range 50 to 130KG
~ 60mm height adjustment in 3 steps
~ Height in lowest postion 140mm
~ Overall width 360mm
~ Overall length 450mm
Applications;
Cat Machines: 416C, 416D, 420D, 420E, 420F, 426C, 426D, 428D, 430D, 430E, 430F, 432D, 432E, 436C, 432D, 442D, 442E, 444E, 446D, 450E, 450F
Replaces John Deere Part Numbers: AT407315, AT407317
John Deere Machines: 310G, 310J, 310SJ, 315SJ, 410G, 410J, 710G, 710J
New Holland Part Numbers: 85815538, 85815539, 85815542, 85815543
New Holland Machines: 555E, 575E, 675E, B95, B95B, B110, B110B, LB75, LB75B, LB90, LB90B, LB95, LB95B, LB110, LB110B
Komatsu Part Numbers: 312605088, 312605089
Komatsu Machines: WB140, WB140-2, WB146, WB146-5
Case Machines: Dozers; 550G, 650G, 850G, 1150G, 550H, 650H, 750H, 850H, 1150H, 650K, 650L, 750K, 750L, 850K, 850L, 1150K, 1650L. Loaders; 21F, 121F, 221F, 321F.
Caterpillar Machines: Crawler Loaders; 939C, 943, 953, 963, 973, 953B, 963B, 953C, 963C, 973C. Dozers; D3B, D6D, D3C, D3G D4C, D4G, D4H, D5C, D5G, D5H, D6H, D6R, D7H, D7R, D8R, D8N, D8R, D9N, D9R, D10N, D10R. Graders; 120G, 12G, 130G, 140G, 14G, 16G, 120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H. Rollers; CP-433C, CS-431C, CS-433C, CS-531C, CS-533C, CS-563C, CS-573C, CS-583C. Telehandlers; TH220B, TH330B, TH340B, TH350B, TH355B, TH460B, TH560B, TH580B. Wheel Loaders; 914G, 924G, 924GZ, 928F, 928G, IT14G, IT28G, IT14G2, IT38G, IT38G II, IT62G II, 924H, 930G, 938G, 938G II, 950G II, 962G II, 966G II, 972G II.
Dresser Machines: TD7E, TD7G, TD8E, TD8G, TD8H, TD8M, TD9H, TD10M, TD10R, TD15C, TD15E, TD15M, TD20C,
TD20M, TD20E, TD25E, TD25G
John Deere Machines: Dozers; 450G, 650G, 450H, 450J, 550H, 550J, 650H, 650J, 700H, 700J, 750C, 750H,750J, 850C, 850J, 950C, 950J, 1050C, 1050J. Graders; 344G, 544E, 544G, 644E, 644G. Graders; 570B, 670B, 672B, 770B, 772B, 670C, 672C, 770C, 772C, 670D, 672D, 770D, 772D, 870D, 872D. Loaders; 344G, 544E, 544G, 644E, 644G, 444H, 544H, 624H, 644H, 744H, 244J, 244K, 304J, 304K, 344J, 344K, 444J, 544J, 624J, 644J, 724J, 744J, Skidders; 548E, 648E, 548G, 648G
Komatsu Machines: Dozers; D31EX-20, D31PX-20, D31EX-21, D31PX-21, D31EX-22, D31PX-22, D37EX-21, D37EX-22, D37EX-23, D37EX-24, D37PX-21, D37PX-22, D37PX-23, D37PX-24, D39EX-21, D39EX-22, D39EX-23, D39EX-24, D39PX-21, D39PX-22, D39PX-23, D39PX-24, D41E-6, D41P-6, D61EX-23, D61EX-24, D61PX-23, D61PX-24, D65EX-15, D65PX-15, D65EX-17, D65PX-17, D65EX-18, D65PX-18, D85EX-15, D85PX-15, D85EX-18, D85PX-18, D155AX-7, D155AX-8. Graders; GD555-3, GD655-3, GD655-5, GD675-3, GD675-5.
Volvo Machines: Loaders; L30B, L35B, L40B, L45B, L50B, L50E, L70C, L90B, L90C, L120B, L120C, L150B, L150C. Rollers; DD110B
We supply seats and spare parts from the most respected manufacturers e.g. , Grammer, Isringhausen, Pilot SEARS; KAB and provide full technical support not only for our product range but also for vehicle seats in general.
We hold large stocks of seats, spare parts and accessories enabling us to receive, process and dispatch your orders immediately.
Experts at your service,with over 40yrs of proven proficiency in seating industry.
We are here to help,please contact us on;
Mobile:085 8709433/087 9193342
Email:sales@seatsystems.ie
Call into our showroom/office @
Unit 5/7 Childers Road Enterprise centre limerick, V94YC99
