ISRI VOLVO SEAT
Volvo is a leading manufacturer of off-highway industrial equipment, trucks, and engines. From clearing forests and transporting lumber, to mining iron ore, its equipment is used worldwide. Volvo is a name recognized across the heavy-duty trucking industry. Construction equipment carrying the Volvo name includes wheel loaders, excavators, dump trucks, articulated haulers, and motor graders.

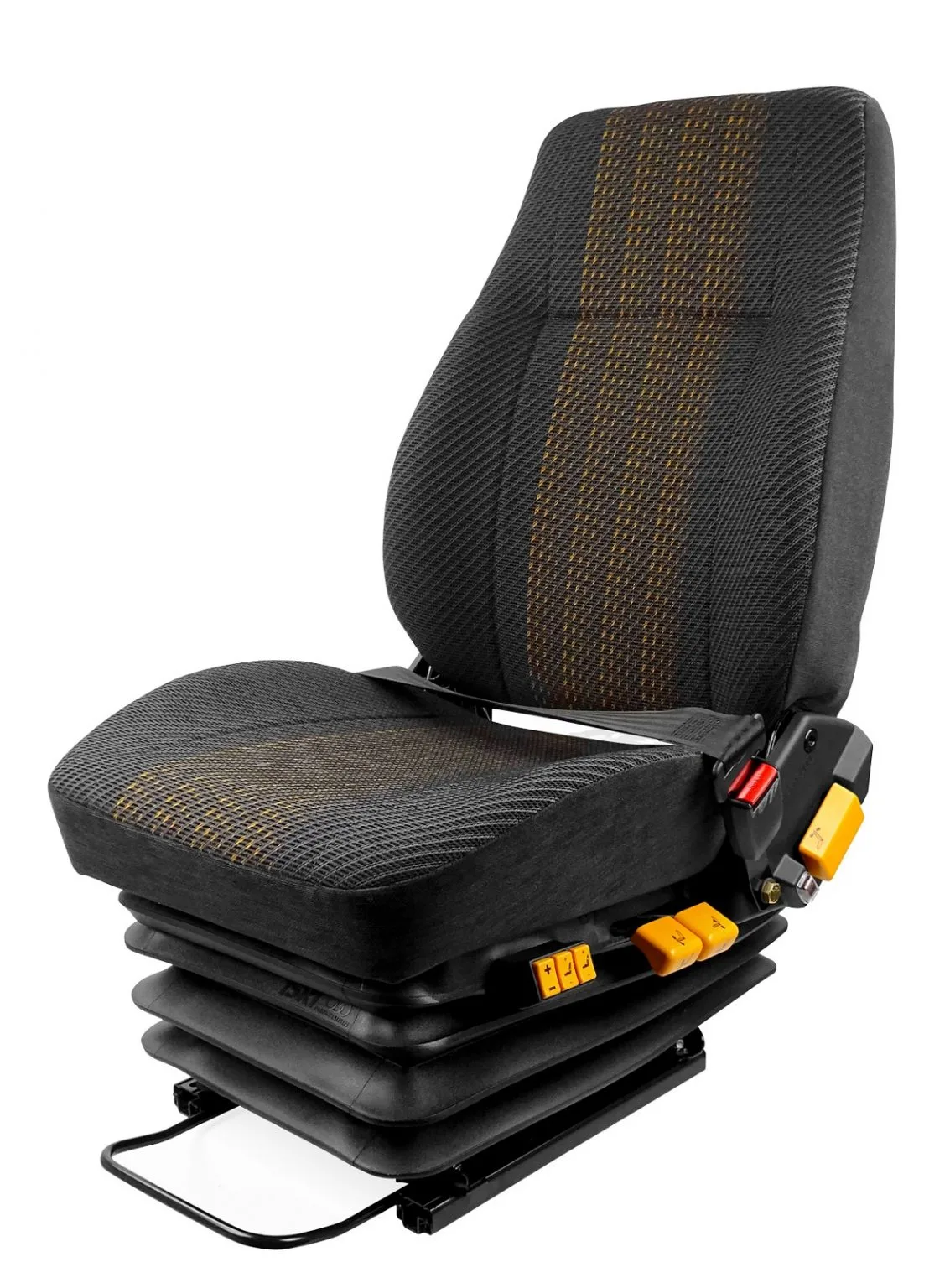

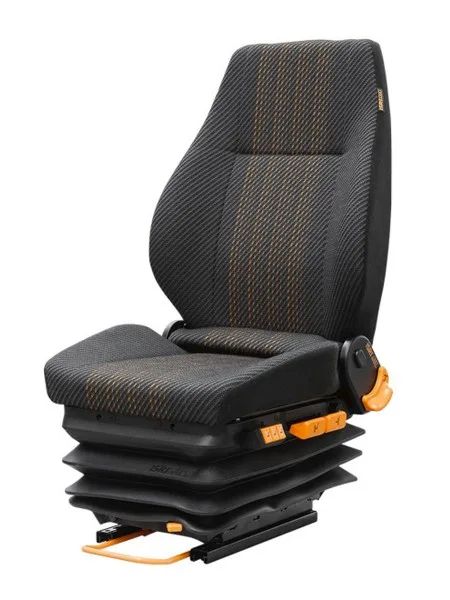

The ISRI volvo seat fabric is an air-suspension seat especially for Volvo construction machines. This seat is prepared to connect Volvo’s Comfort Drive Control (CDC) relatively easily. The seat has a built-in 24V compressor.
This VOLVO air seat ISRI 24V is suitable for machinery including loading shovels,dump trucks,
excavators and many more.
Also All VOLVO seat seating spare parts are available.
24V air suspension with compressor
24v heated cushions
Side air operating controls
Twin air lumbar support
High reclining backrest
65mm height and tilt adjustment
180mm sliderail adjustment
ALL SPARE PARTS AVAILABLE FOR REPAIRS
VOLVO VOE1142638
ISRI 6500KM/348
Applications
Case Machines: Articulated Trucks; 327B, 330, 330B, 335, 335B, 340, 340B. Wheel Loaders; 621, 621B, 721, 721B, 821B, 921B, 521D, 621C, 621D, 721C, 721D, 821C, 921C, 521E, 621E, 721E, 821E, 921E, 521F, 621F, 721F, 821F, 921F, 1021F, 1121F
Cat Part Numbers: 154-5732, 279-2300, 279-2301, 324-7017, 421-1230, 8Y-4194
Caterpillar Machines: Articulated Trucks; 725, 725C, 730, 730C, 735B, 735C, 740, 740B 740C, 770. Haul Trucks; 768C, 769C, 771C, 772B, 773B, 775B, 776C, 784B, 785B, 789B, 793B, 793C. Graders; 120G, 12G, 130G, 140G, 14G, 16G, 120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H. Rollers; CP-433C, CS-431C, CS-433C, CS-531C, CS-533C, CS-563C, CS-573C, CS-583C. Wheel Loaders; 914G, 924G, 924GZ, 928F, 928G, IT14G, IT28G, IT14G2, IT38G, IT38G II, IT62G II, 924H, 930G, 938G, 938G II, 950G II, 962G II, 966G II, 972G II
Doosan Machines: DL160, DL200, DL250, DL300, DL420, DL450, DL500, DL550
Hyundai Machines: Excavators; HX130, HX145, HX235
John Deere Part Numbers: AT431572, AT507969
John Deere Machines: Articulated Trucks; 260E, 310E, 370E, 410E, 460E. Graders; 344G, 544E, 544G, 644E, 644G. Graders; 570B, 670B, 672B, 770B, 772B, 670C, 672C, 770C, 772C, 670D, 672D, 770D, 772D, 870D, 872D. Loaders; 344G, 544E, 544G, 644E, 644G, 444H, 544H, 624H, 644H, 744H, 244J, 244K, 304J, 304K, 344J, 344K, 444J, 544J, 624J, 644J, 724J, 744J, Skidders; 548E, 648E, 548G, 648G
Terex Machines: Articulated Trucks; TA27, TA30, TA35, TA40, TA250, TA300, TA400
Volvo Part Numbers: VOE15205030
Volvo Machines: Excavators; EC140, EC160, EC210, EC240, EC290, EC340, EC360. Loaders; L30G, L35G, L45G, L50F, L50G. Graders; G710, G710B, G720, G720B, G726B, G736, G740, G740B, G930, G930B, G940, G940B, G946, G946, G960, G960B, G960C, G970, G976, G990.
Experts at your service,with over 30yrs of proven proficiency in seating industry.
We are here to help,please contact us on;
Mobile:085 8709433/087 9193342
Email:sales@seatsystems.ie
Call into our showroom/office @
Unit 5/7 Childers Road Enterprise centre limerick, V94YC99
